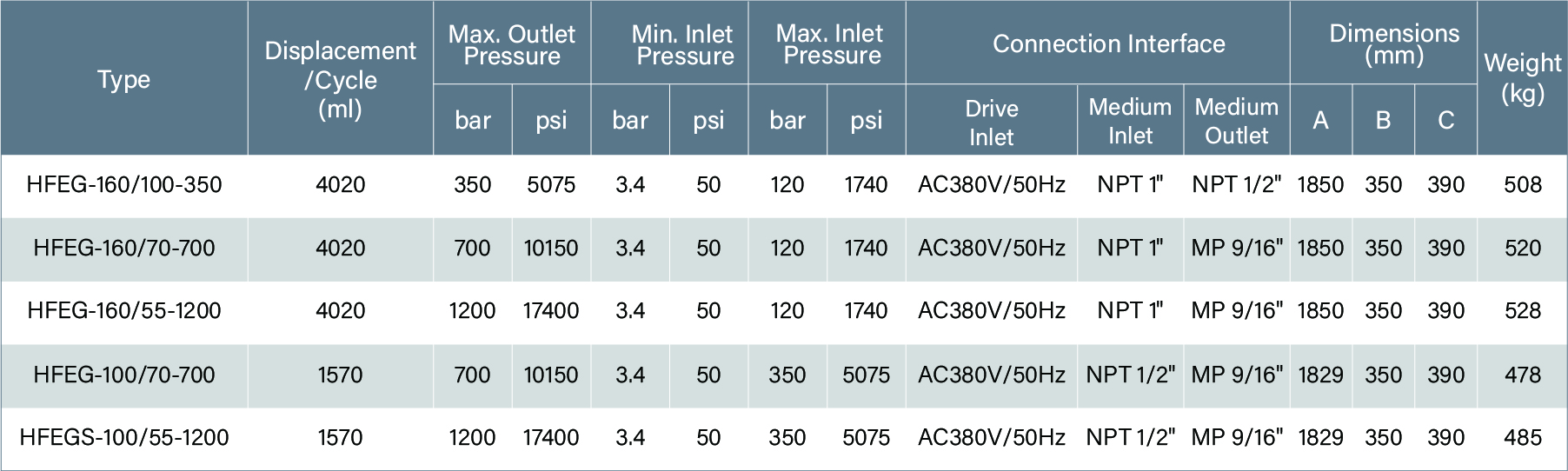

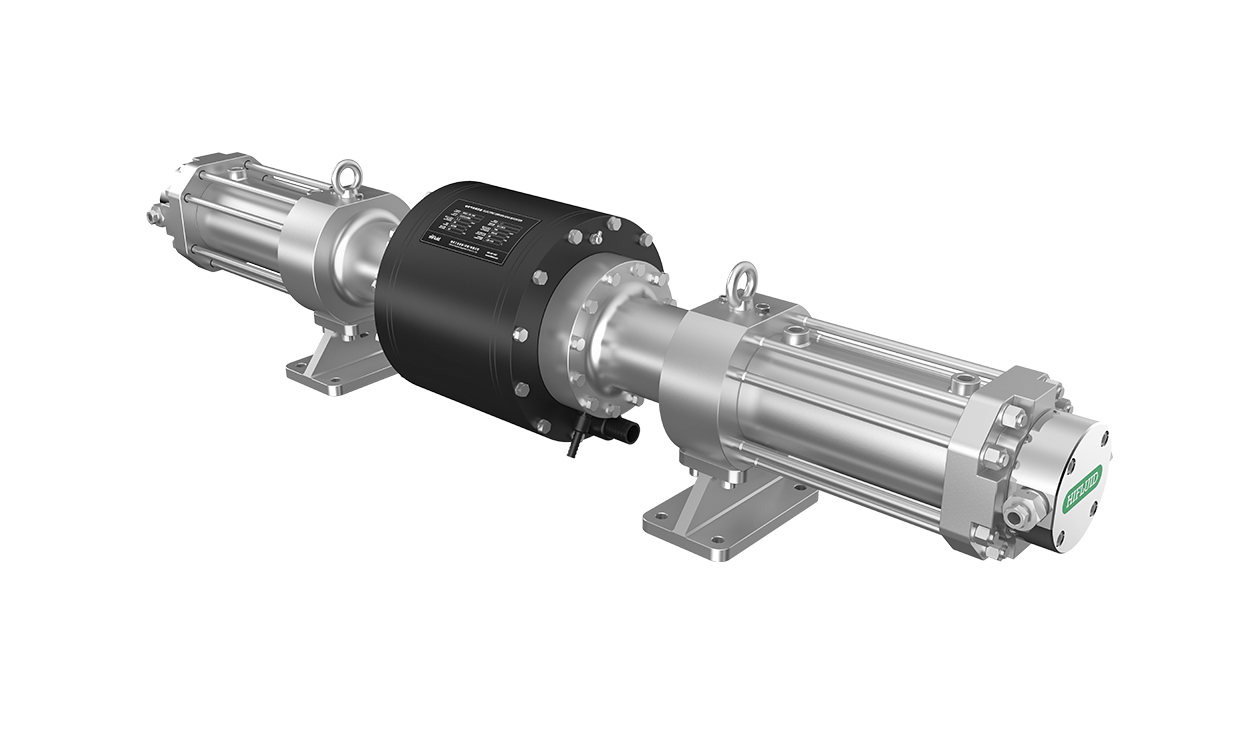

Single-stage double-acting Electric Driven Gas Boosters

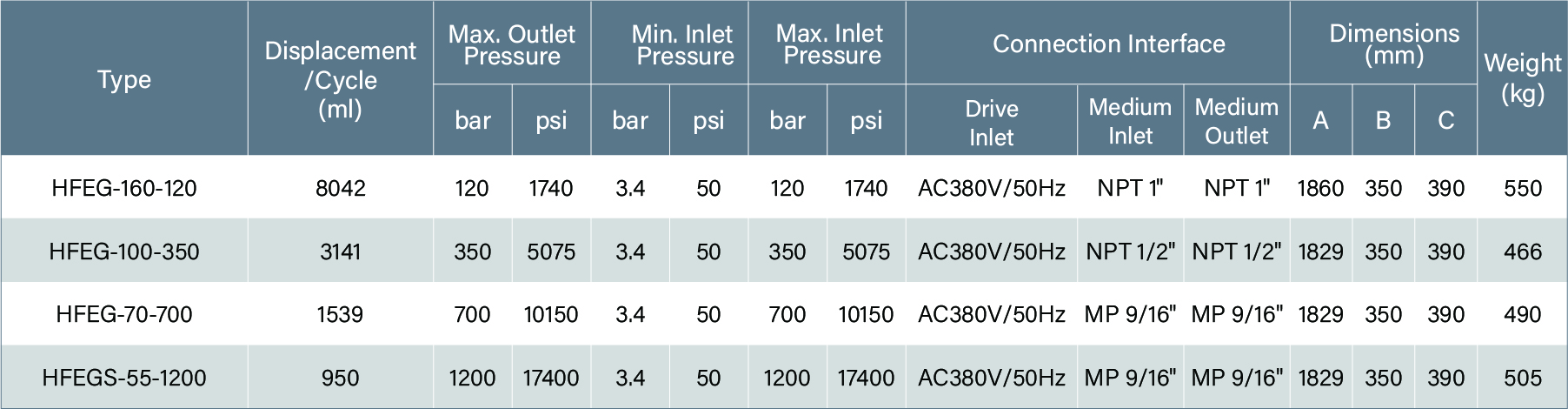

Double-stage single-acting Electric Driven Gas Boosters
· Specifically designed for high-pressure gas applications, suitable for a wide range of gases.
· Excellent primary sealing performance with oil-free lubrication, ensuring long service life.
· Compact footprint, low noise, environmentally friendly, and energy-efficient.
· Maintenance-friendly structural design that significantly reduces seal replacement time.
· Intelligent automated control, fully compatible with various communication protocols.
· Modular design with flexible combinations and multiple configuration options.
· Equipped with a self-cooling system featuring spiral flow guidance for uniform and efficient heat exchange.
· Continuous flow regulation from 0% to 100%.
· Optional remote monitoring modules available.
· Extremely high power efficiency.
· Leak Testing: Provides high-pressure gas for leak detection to verify the integrity of components and identify potential leakage points.
· Gas Filling: Enables contamination-free, high-flow gas filling of cylinders, equipment, or systems to achieve required pressure levels.
· Semiconductor CO₂ Applications: Used in semiconductor manufacturing processes such as cleaning, atomization, and etching.
· Gas-Assisted Forming: Supplies high-pressure, high-flow gas to support forming processes, improving forming quality and consistency.
· Pressure Testing: Provides high-precision pressure control during pressure testing procedures.
· Oxygen Applications: Applied in large-scale oxygen cylinder operations, such as commercial diving stations and medical institutions.
